| 50HZ/1500RPM, 3-Fase 4 hilos, 220/380V | ||||||
|---|---|---|---|---|---|---|
| Modelo de grupo electrógeno | La potencia nominal / Alimentación de reserva (KW) | La potencia nominal / Alimentación de reserva (KVA) | El modelo de motor | El consumo de combustible (L/H) | El cilindro | El desplazamiento (L) |
| KW | KVA | L/H | L | |||
| 20GF | 20/22 | 25/28 | 4B3.9-G1 | 245/6 | 4L | 3.9 |
| 20GF | 20/22 | 25/28 | 4B3.9-G2 | 229/6 | 4L | 3.9 |
| 30GF | 30/33 | 38/42 | BT3.9 4-G1 | 229/8 | 4L | 3.9 |
| 30GF | 30/33 | 38/42 | BT3.9 4-G2 | 229/8 | 4L | 3.9 |
| 50GF | 50/55 | 63/69 | 4BTA3.9-G2 | 212/13 | 4L | 3.9 |
| 60GF | 60/66 | 75/83 | 4BTA3.9-G11 | 208/15 | 4L | 3.9 |
| 80GF | 80/88 | 100/110 | BT5.9 6-G1 | 208/20 | 6L | 5.9 |
| 80GF | 80/88 | 100/110 | BT5.9 6-G2 | 203/21 | 6L | 5.9 |
| 100GF | 100/110 | 125/138 | 6BTA5.9-G2 | 211/25 | 6L | 5.9 |
| 110GF | 110/120 | 138/152 | 6BTAA5.9-G2 | 208/28 | 6L | 5.9 |
| 120GF | 120/132 | 150/165 | 6BTAA5.9-G12 | 203/29 | 6L | 5.9 |
| 150GF | 150/165 | 188/207 | 6CTA8.3-G2 | 212/38 | 6L | 8.3 |
| 160GF | 160/176 | 200/220 | 6CTAA8.3-G2 | 205/40 | 6L | 8.3 |
| 200GF | 200/220 | 250/275 | 6LTAA8.9-G2 | 197/47 | 6L | 8.9 |
| 300GF | 300/330 | 375/413 | 6ZTAA13-G3 | 200/72 | 6L | 13 |
| 350GF | 350/385 | 438/482 | 6ZTAA13-G2 | 192/81 | 6L | 13 |
| 360GF | 360/396 | 450/495 | 6ZTAA13-G4 | 191/83 | 6L | 13 |
| 360GF | 360/396 | 450/495 | QSZ13-G2 | 192/83 | 6L | 13 |
| 400GF | 400/440 | 500/550 | QSZ13-G3 | 193/83 | 6L | 13 |
| 200GF | 200/220 | 250/275 | NT855-GA | 191/46 | 6L | 10.8 |
| 200GF | 200/220 | 250/275 | NTA855-G1 | 204/49 | 6L | 14 |
| 220GF | 220/250 | 275/303 | NTA855-G1A | 192/51 | 6L | 14 |
| 250GF | 250/280 | 313/344 | NTA855-G1B | 208/63 | 6L | 14 |
| 250GF | 250/280 | 313/344 | NTA855-G2 | 208/63 | 6L | 14 |
| 275GF | 275/300 | 344/378 | NTA855-G2A | 197/65 | 6L | 14 |
| 280GF | 280/310 | 350/385 | NTA855-G4 | 197/67 | 6L | 14 |
| 300GF | 300/330 | 375/413 | NTAA855-G7 | 206/75 | 6L | 14 |
| 300GF | 300/330 | 375/413 | KTA19-G2 | 210/76 | 6L | 18.9 |
| 330GF | --/360 | --/454 | NTAA855-G7A | 200/80 | 6L | 14 |
| 360GF | 300/330 | 450/495 | KTA19-G3 | 205/89 | 6L | 18.9 |
| 400GF | 400/440 | 500/550 | KTA19-G3A | 203/98 | 6L | 19 |
| 400GF | 400/450 | 500/550 | KTA19-G4 | 203/98 | 6L | 18.9 |
| 420GF | 420/505 | 525/578 | KTA19-G5 | 204/103 | 6L | 18.9 |
| 460GF | 460/520 | 575/633 | KTA19-G6 | 215/120 | 6L | 18.9 |
| 480GF | --/528 | --/600 | KTA19-G8 | 206/119 | 6L | 18.9 |
| 500GF | --/500 | --/688 | KTAA19-G6A | 206/124 | 6L | 18.9 |
| 500GF | 500/550 | 500/550 | KT38-G | 213/128 | 12L | 37.8 |
| 520GF | 520/570 | 520/570 | QSKTAA19-G3 | 217/136 | 6L | 18.9 |
| 580GF | 580/638 | 580/638 | KT38-GA | 289/202 | 12L | 37.8 |
| 600GF | 600/660 | 750/825 | KTA38-G2 | 214/155 | 12L | 37.8 |
| 640GF | 640/710 | 800/880 | KTA38-G2B | 200/154 | 12L | 37.8 |
| 728GF | 728/800 | 728/800 | KTA38-G2A | 203/178 | 12L | 37.8 |
| 800GF | 800/880 | 1000/1100 | KTA38-G5 | 202/195 | 12L | 37.8 |
| 900GF | --/990 | --/1238 | KTA38-G9 | 199/216 | 12L | 37.8 |
| 1000FG | 1000/1100 | 1250/1375 | KTA50-G3 | 202/243 | 12L | 50.3 |
| 1000FG | 1000/1100 | 1000/1100 | QSK38-G5 | 211/254 | 12L | 37.7 |
| 1100FG | --/1210 | --/1210 | KTA50-G8 | 205/272 | 16L | 50.3 |
| GF 1200 | --/1320 | --/1320 | KTA50-GS8 | 204/295 | 16L | 50.3 |
| 1500FG | 1500/1650 | 1500/1650 | QSK60G3 | 191/345 | 16L | 60.2 |
| 1672FG | 1627/1778 | 1627/1778 | QSK60G4 | 193/378 | 16L | 60.2 |
| 1600FG | 1600/2000 | 1600/2000 | QSK60G5 | 193/372 | 16L | 60.2 |

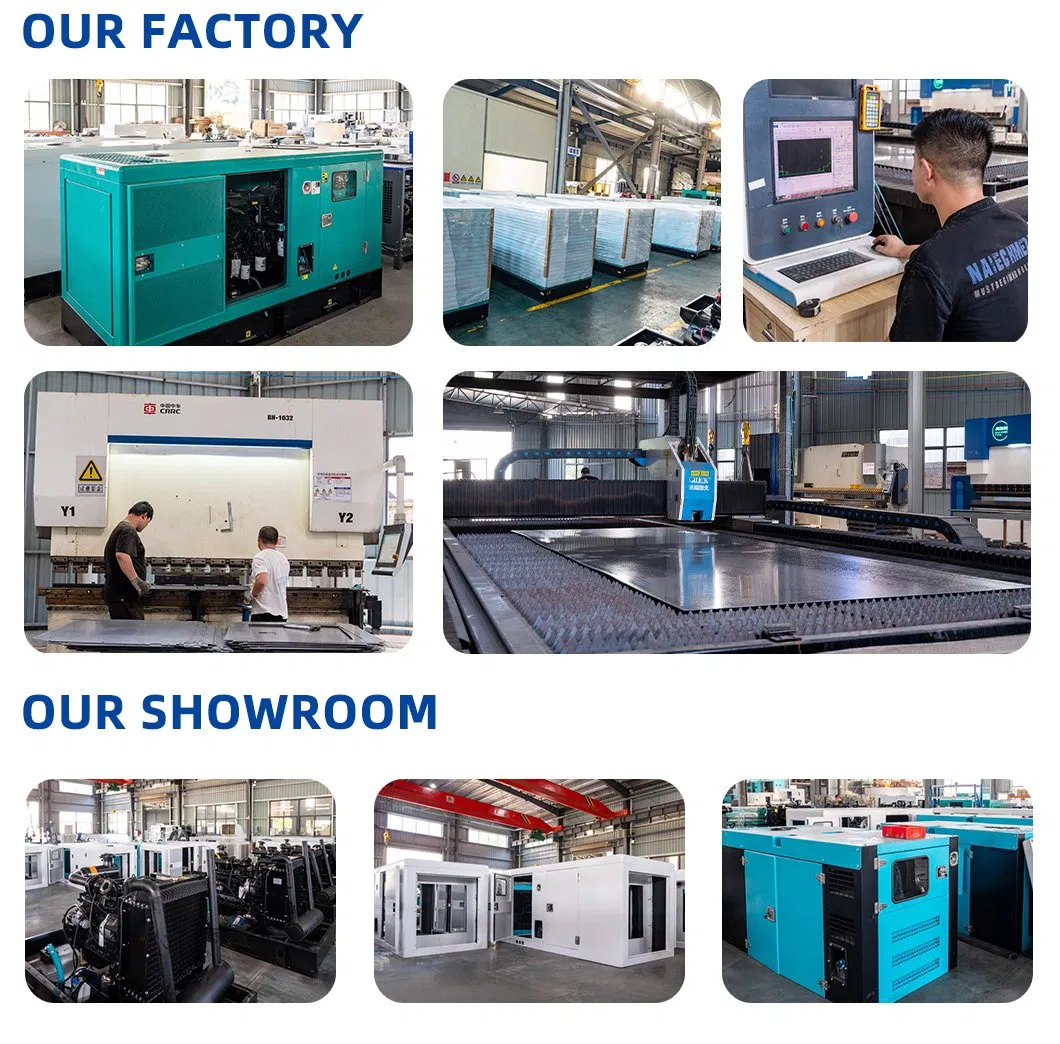

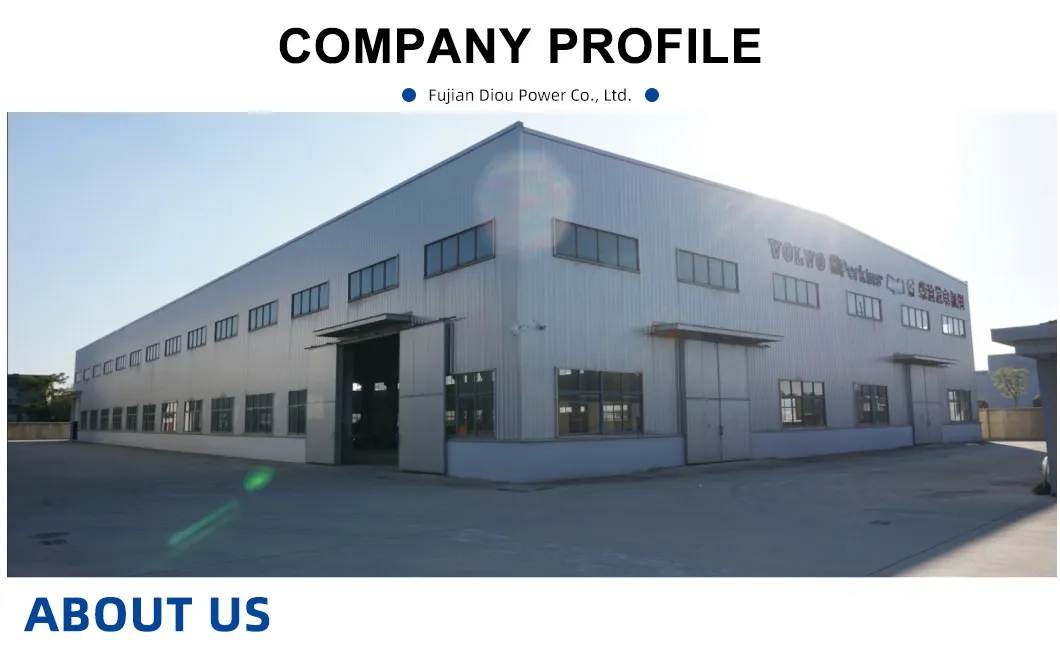

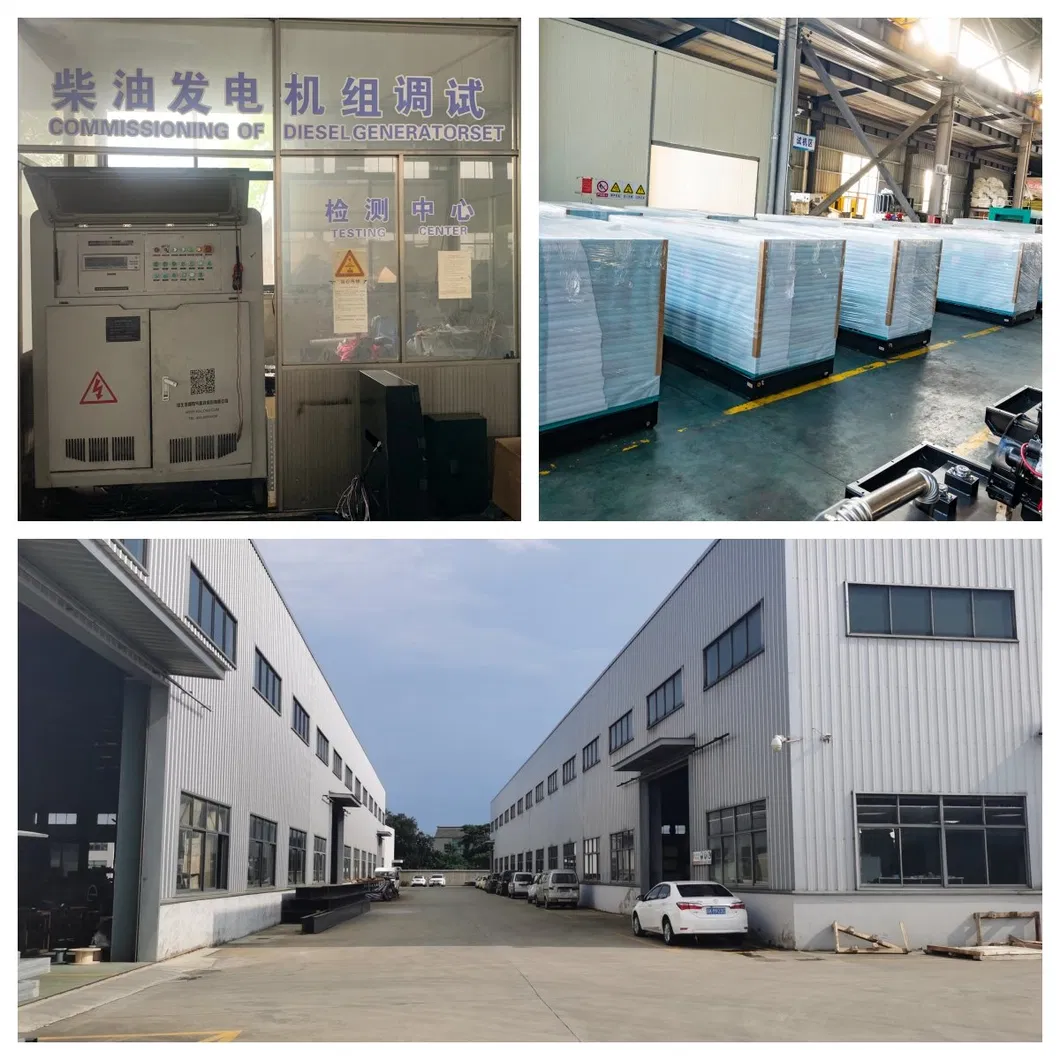

Somos una empresa comercial con nuestra propia fábrica.
Por favor, díganos sus necesidades específicas, incluyendo el producto y la cantidad, y a continuación obtendrá un mejor precio.
La cantidad mínima de pedido es de 1 pieza.
Sí, podemos realizar la fabricación bajo la modalidad OEM con su debida autorización de marca.
Podemos realizar la carga en cualquier puerto de China. Por lo general, se realiza a través del puerto de Xiamen.
